6224 deep groove ball bearings 120x215x40

Place of Origin : Shandong

Brand Name : SAY

Certification : ISO

Model Number : 6224

Material : chrome steel,carbon steel

MOQ : 100

Price : 0.01

Packaging Details : industrial packing,single packing

Delivery Time : 7 days

Payment Terms : TT,LC,DP

Supply Ability : 10000

Contact Now

6224 Deep Groove Ball Bearing

Model:	6224
Old Model:	224
Inside diameter (ID d):	120 mm
Outside diameter (OD D):	215 mm
Thickness (B):	40 mm
Basic dynamic load rating (Cr):	155 kN
Basic static load rating (Cor):	131 kN
Reference speed (Grease rpm):	2600 r/min
Limiting speed (Oil rpm):	3400 r/min
Mass (M):	5.3 kg
Category:	Deep Groove Ball Bearing

Deep groove ball bearing Features:

1.Structure:General,flanged,extended inner ring

2.Shield / closure: Open,Teflon Sealed,Rubber Seals,2 Metal Shield
3.Tolerance codes: ABEC-1, ABEC-3, ABEC-5, ABEC-7,ABEC-9
4.Vibration level codes: V4, V3, V2, V1
5.Internal clearance codes: C0,C2, C3, C4, C5
6.Material: AISI52100, AISI440C, AISI304, AISI316, Ceramic
7.Retainer: PTFE, Nylon, PEEK Or Stainless Steel

8.Bore Size:from 1mm to 300mm

9.Outside Diameter:from 3mm to 500mm

TYPE Seals of deep groove ball bearings: 16000 ZZ,RS,2RS,RZ Series 16001--16017

604—609 ZZ,RS,2RS,RZ 624--629

6000 ZZ,RS,2RS,RZ Series 6000--6060

6200 ZZ,RS,2RS,RZ,Series 6200--6228--6252

62200ZZ,RS,2RS,RZSeries 62200--62216

6400 ZZ,RS,2RS,RZ Series 6403--6413

6800 ZZ,RS,2RS,RZ Series 6800--6822--6872

6900 ZZ,RS,2RS,RZ Series 6900--6922--6956

China 6224 deep groove ball bearings 120x215x40 wholesale

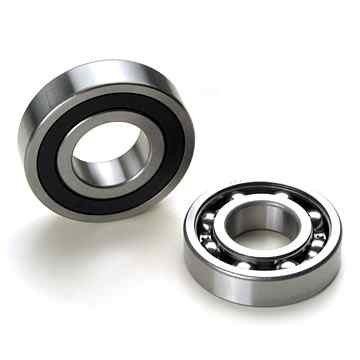

6224 deep groove ball bearings 120x215x40 Images
